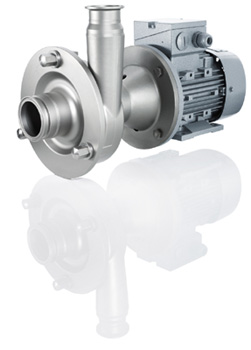

FP / FPE Series Centrifugal Pumps

The FP and FPE Series is the original Fristam pump which established the standard for high performance centrifugals. The newly expanded FP Series now offers flow rates up to 550 m3/h. The heavy-duty, high performance sanitary centrifugal pumps handle the most demanding applications such as vacuum withdrawal from evaporators, viscous, hot, or abrasive products. Viscosity capabilities up to 800 cP and process temperatures up to 200°C. Options include bearing block mounting, various seal arrangements and connections. Manufactured of 316L stainless steel.

• Open impeller
• Ability to process sticky and abrasive products
• Process temperature up to 200°C
• Product viscosity up to 800 cP
• Single or double internal mechanical seals
• CIP-able and SIP-able
• Flow rates up to 550 m³/h
• Close-coupled or bearing block style available
• System pressures up to 25 bar
• Discharge pressures up to 15 bar

For more information on this product, please download the brochure.

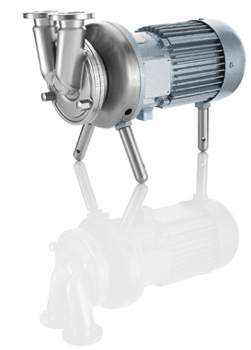

FZ Self Priming Centrifugal Pumps

The self-priming Fristam FZ pumps operate in accordance with the side-channel principle. Impellers with radial blades, in conjunction with hydro-dynamically optimised side-channels, transmit the pressure energy to the product. Very narrow packed sealing gaps ensure an outstanding suction performance.

Model Sizes FZ

• 6 different sizes
• System pressures up to 15 bar
• Discharge pressures up to 6.5 bar
• Flow rates up to 64 m³/hr
• Viscosities up to 5000cP

For more information on this product, please download the brochure.

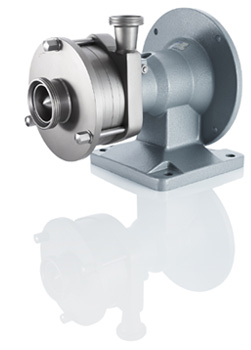

FM Series Multi-Stage Centrifugal Pumps

Fristam FM pumps have been specially developed for generating high pressures and for operation with extreme pressure loads. The pressure is increased by several successive pumping stages.

Model Sizes FM

• 3 different sizes
• 2-5 stages
• Impeller diameter up to 250 mm
• Discharge pressures up to 45 bar
• Flow rates up to 80 m³/hr
• Viscosities up to 500 cP

For more information on this product, please download the brochure.

FPH High Pressure Centrifugal Pumps

The FPH Series sanitary centrifugal high-pressure pumps supplement the capabilities of the Fristam multi-stage pumps. These models were designed specifically for recirculation in reverse osmosis systems or handling high process line pressures. As recirculation pumps, they offer greater flexibility when designing or upgrading your system.

• Multi-stage product line
• Single or double mechanical seal
• System pressure up to 80 bar
• Flow rate up to 550 m³/hr
• Maximum viscosity up to 800 cP
• CIP-able and SIP-able

For more information on this product, please download the brochure.
